Metric Feed-Through Terminals
Wherever you find a battery module larger than a loaf of bread, you will find Rebling’s terminals and connectors. Equipping your design with these watertight, single-pole, wrench disconnect battery terminals will enable system integrators to easily incorporate your power modules into the MicroGrid, Reserve Power, Vehicle Electrification or APU systems the end-user requires, regardless of battery chemistry. Whether you are coupling battery modules in series for a stationary power application, a liquid-cooled motive power system, a single SLI module, a telecom or data center reserve power system or simply bringing DC power from the inside to the outside of a panel, our terminals, covers, and accessories are designed with your application in mind.
Compare Lithium Battery Terminal Options
| Photo |
Terminal Name |
Rated Current |
Peak Current |
Panel Material |
Min Panel Thickness |
Max Panel Thickness |
Best Feature |
|---|---|---|---|---|---|---|---|
 |
TFT | 100 amp | 600 amp |
Metal or Plastic |
0.6mm | 4.0mm | Smallest & closest centerlines |
 |
LFT | 250 amp | 1,500 amp | Metal | 2.8mm | 17.8mm | Accommodates wide variation in panel thickness |
 |
SIP | 250 amp | 1,500 amp |
Metal or Plastic |
1.4mm | 6.5mm | Lowest assembly labor + no mounting hardware |
 |
SFT | 250 amp | 1,500 amp |
Metal or Plastic |
0.6mm | 14.0mm | Great for thin or weak panels |
 |
Top Seal 250 | 250 amp | 1,500 amp |
Metal or Plastic |
1.0mm | 4.7mm | Eliminates 500 mm of cable & 4 crimp lugs |
 |
MFT | 500 amp | 3,000 amp |
Metal or Plastic |
0.6mm | 14.0mm | Great for thin or weak panels |
 |
Top Seal 500 | 500 amp | 3,000 amp |
Metal or Plastic |
1.0mm | 4.7mm | Eliminates 500 mm of cable & 4 crimp lugs |
 |
XFT 750 | 750 amp | 4,000 amp |
Metal or Plastic |
0.6mm | 17.8mm | Handles multiple cables or large bus bars |
 |
XFT 1,000 | 1,000 amp | 5,000 amp |
Metal or Plastic |
0.6mm | 17.8mm | Handles multiple cables or large bus bars |
 |
100 amp TFT-style Lithium Battery TerminalThe TFT-style terminal is a compact 100 amp feed-through terminal designed for lithium battery modules that need a small footprint and simple installation. It uses molded-in mounting pegs instead of panel mounting screws, supports 8 AWG to 2 AWG cables. The TFT is designed for compact battery enclosures and accepts snap-on flexible or rigid covers.Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet |
 |

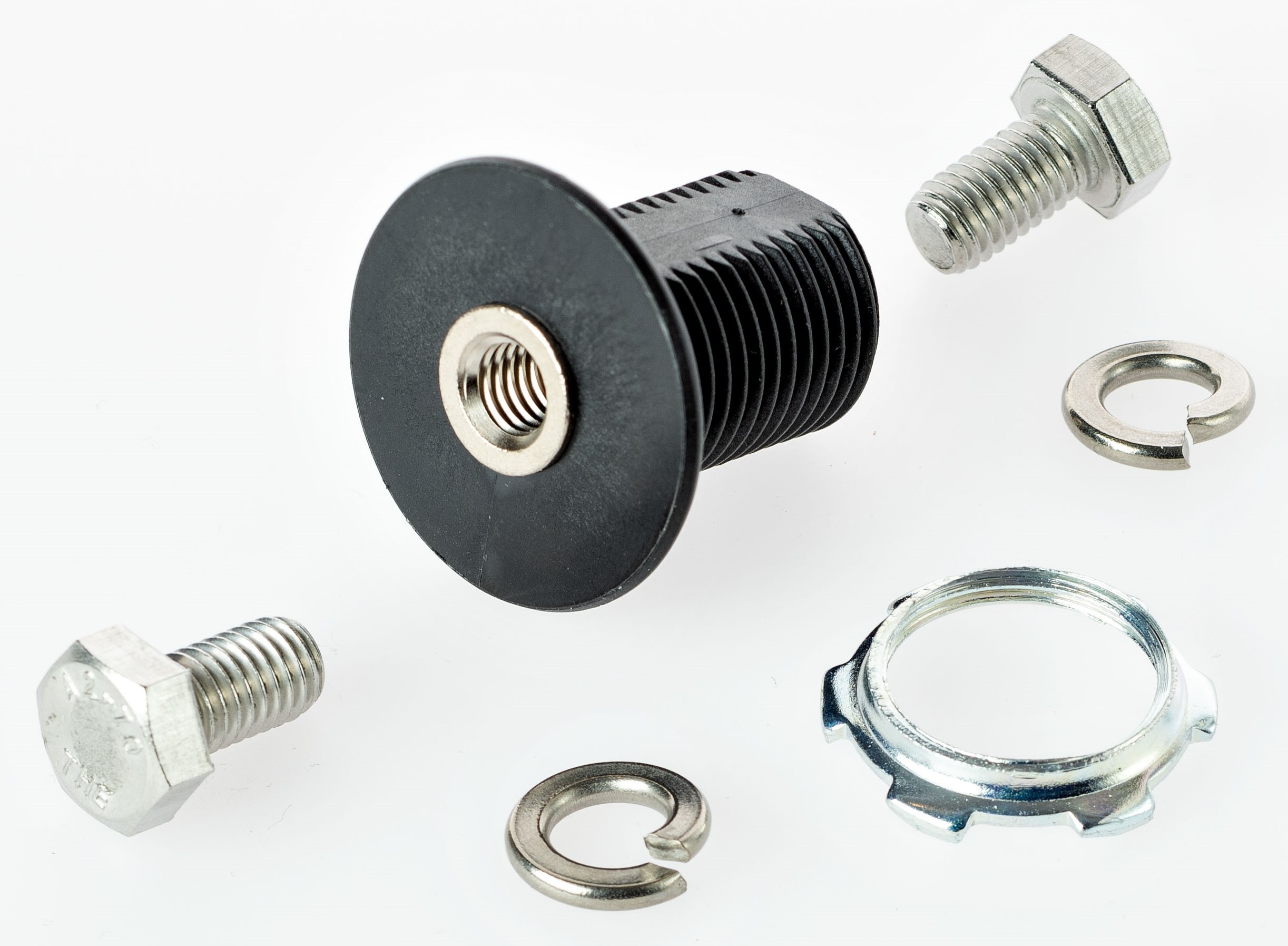

250 amp LFT-style Lithium Battery TerminalThe LFT-style terminal is a compact 250 amp feed-through terminal designed for lithium battery modules that do not require mounting ears. Its nickel-plated brass conductor provides corrosion resistance and low temperature rise under high charge or discharge currents. The LFT accepts the same snap-on rigid and flexible covers used across the Rebling terminal family and is commonly used in stationary energy storage, reserve power, and vehicle electrification systems.Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet |
|
250 amp SIP-style Lithium Battery TerminalThe Snap Into Panel, or SIP, terminal is a 250 amp feed-through design for OEMs that want to eliminate panel-attachment hardware. It installs into panels with an arbor press, improves assembly consistency, and is designed for high-vibration applications. The SIP uses the same nickel-plated brass conductor and accepts the same rigid or flexible covers as Rebling’s other 250 amp terminal options.Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet |
 |

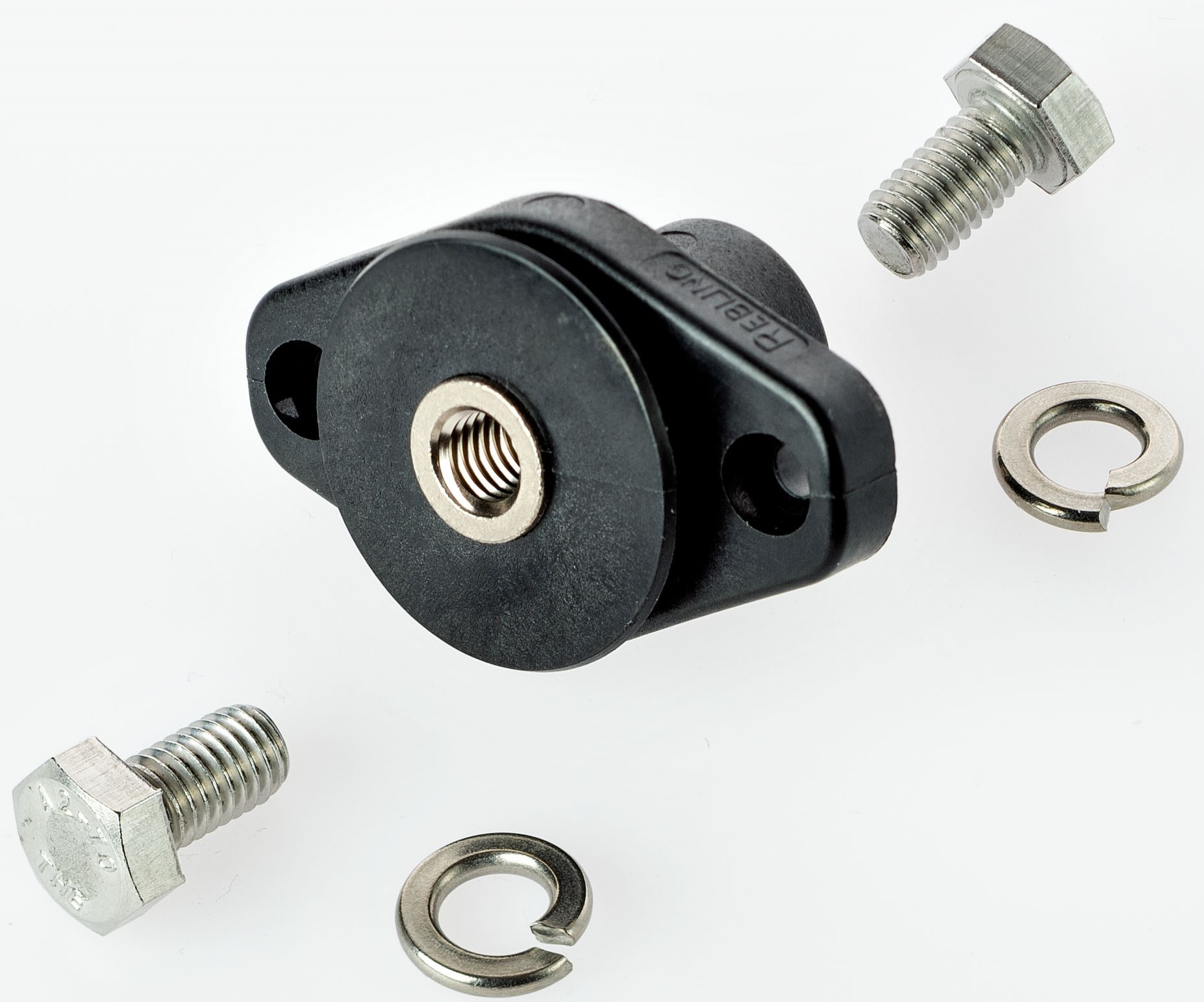

250 amp SFT-style Lithium Battery TerminalThe SFT-style terminal is a 250 amp feed-through terminal with mounting ears for battery designs using thin or weak panels. It offers the same electrical performance as the LFT-style terminal while providing stronger panel attachment. Its nickel-plated brass conductor stays cool at high current, and it accepts the same snap-on rigid and flexible covers as other 250 amp Rebling terminals.Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet |
|
250 amp Top Seal Lithium Battery TerminalThe 250 amp Top Seal terminal is designed for lithium battery OEMs integrating terminals directly through the battery lid instead of using separate internal cables and lugs. It helps reduce material, labor, and internal battery volume while supporting higher production scale. The Top Seal uses the same nickel-plated brass conductor and accepts the same rigid and flexible covers as Rebling’s 250 amp feed-through family.Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet |
 |
500 amp MFT-style Lithium Battery TerminalThe MFT-style terminal is a 500 amp feed-through terminal with mounting ears for panels of any material or thickness. It retains the same 2,000 volt rating, IP68 sealing capability, and nickel plating used across Rebling’s lower-power terminal family. The MFT accepts the same snap-on rigid and flexible covers as the LFT and SFT terminals and is built for higher-current battery module designs.Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet |
|
500 amp Top Seal Lithium Battery TerminalThe 500 amp Top Seal terminal is designed for lithium battery OEMs that want to integrate the terminal directly through the battery lid while reducing internal cabling, lugs, and assembly labor. It supports higher-volume production, uses the same nickel-plated brass conductor as the 500 amp MFT-style terminal, and accepts the same rigid and flexible covers used across Rebling’s 500 amp terminal family.Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet |
 |
750 amp XFT-style Lithium Battery TerminalThe 750 amp XFT-style terminal provides the same electrical performance as the 750 amp BFT-style terminal but adds mounting ears for installations on thin or weak panels. Its nickel-plated brass core supports 750 amps continuous current and short-term peaks up to 4,000 amps. The XFT is built for high-current lithium battery, ultracapacitor, and supercapacitor applications that need stronger panel attachment.Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet |
|
1,000 amp XFT-style Lithium Battery TerminalThe 1,000 amp XFT-style terminal delivers the same ultra-high-current performance as the 1,000 amp BFT-style terminal while adding mounting ears for thin or weak panel installations. Its nickel-plated copper core supports 1,000 amps continuous current and short-term peaks up to 5,000 amps. The XFT is intended for demanding EV, APU, fuel cell, and other high-current DC systems that require stronger panel attachment.Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet |
